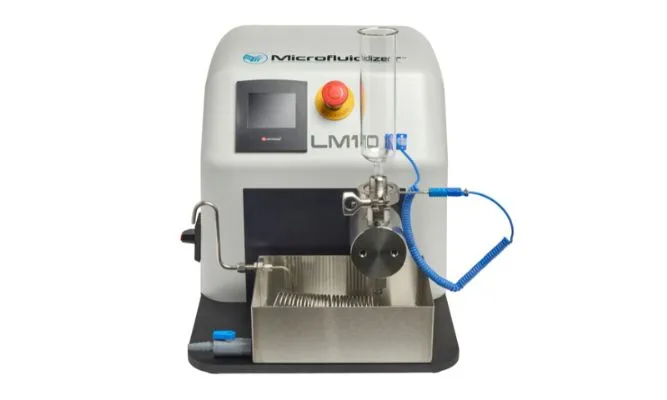

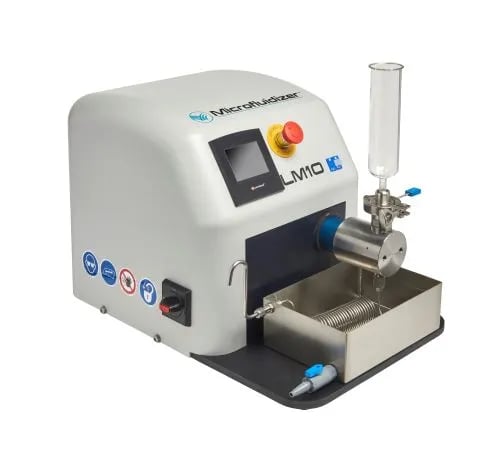

LM10 Microfluidizer® High Shear Fluid Homogenizer

Digitally Controlled Lab Unit for Small Sample Material Processing

This pneumatically driven Microfluidizer® processor, with its modern user interface, is designed for the budget-conscious researcher working with small samples.

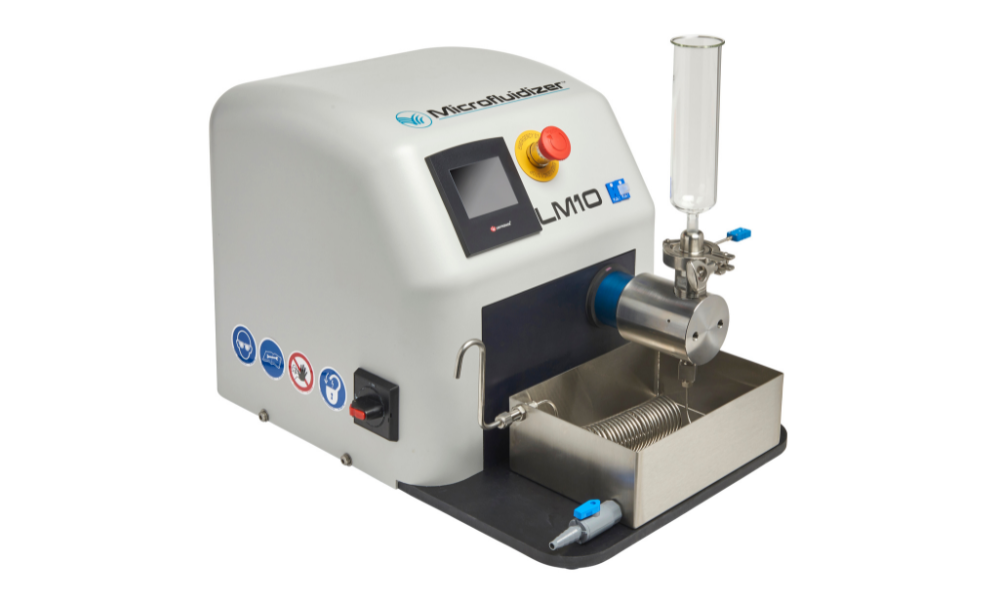

NEW Image 2 of LM10 November 2018

The LM10 efficiently converts fluid pressure into shear forces. By maintaining constant pressure, this processor ensures that 100% of the material gets exactly the same treatment. And, like all Microfluidizer® processors, the LM10 is unmatched in submicron size reduction, cell disruption and guaranteed process scaleup.

The LM10 Microfluidizer® processor features an economical air-driven intensifier pump that supplies the desired pressure at a constant rate to the product stream. The pump travels through its pressure stroke, driving the product at a constant pressure through precisely defined fixed-geometry microchannels within the interaction chamber. The product stream accelerates to high velocities, creating shear rates within the product stream that are orders of magnitude greater than any other conventional means. The entire product experiences identical processing conditions, producing the desired results, including uniform product and droplet size reduction (often submicron), deagglomeration and high-yield cell disruption.

In detail

LM10

Digitally Controlled Lab Unit for Small Sample Material Processing


Standard Features:

  • 300 ml glass reservoir
  • Ceramic interaction chamber assembly
  • Cooling coil and chilled bath assembly
  • Easily autoclavable
  • Easy-to-use color touchscreen control interface
  • 2 Modes of operation for various compressor sizes
  • Calibrate Microfluidizer to specific compressor

Optional Features:

  • Diamond interaction chamber
  • Process pressure transducer
  • Larger capacity glass or stainless steel reservoirs
  • Thermocouple
  • Thermocouple at product inlet
  • Process fluid recirculation assembly/kit
  • Gasket materials
  • Auxiliary Processor Module (APM)
  • Operates at pressures up to 23,000 psi (1546 bar)
  • Requires a minimum sample size of 14 ml
  • Achieves unmatched particle size reduction/disruption performance at low process pressure, which limits sample temperature rise during processing
  • Attains higher product yields after sterile filtration with tighter particle size distribution
  • Promotes optimal temperature control through the removable cooling coil and cooling bath
  • Saves on development time in pilot/production with linear volumetric scaleup
  • Enhances repeatability with easy-to-use digital pressure control
  • Improves experimental reliability with real-time temperature monitoring
  • Ensures dependable process performance over time with maintenance reminder and operator alerts
  • Adapts to future experimentation possibilities with field-upgradable firmware

Tab three content - Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

Tab three content - Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

Our range of Lab / Benchtop machines

Homogenization equipment designed for lab-scale processing

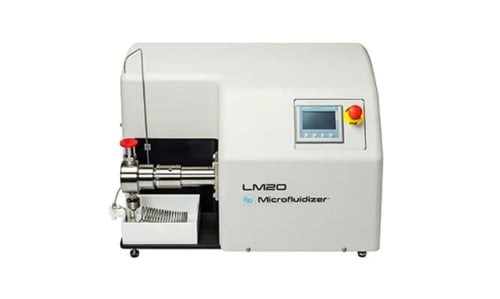

LM20

Digitally controlled, electric powered lab unit for small sample processing

Explore

M110P

Laboratory models for continuous high shear processing

Explore

LV1 Low Volume

High Shear Fluid Processor for the smallest samples

Explore

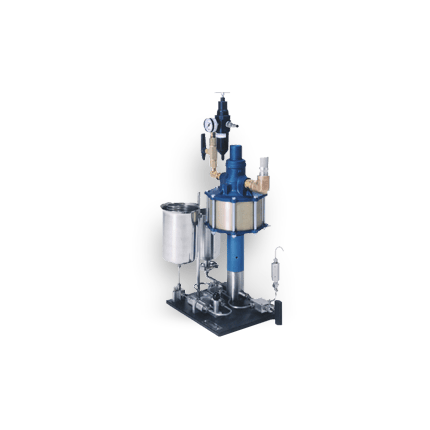

M110Y

High-Pressure Pneumatic HIgh Shear Fluid Processor

Explore

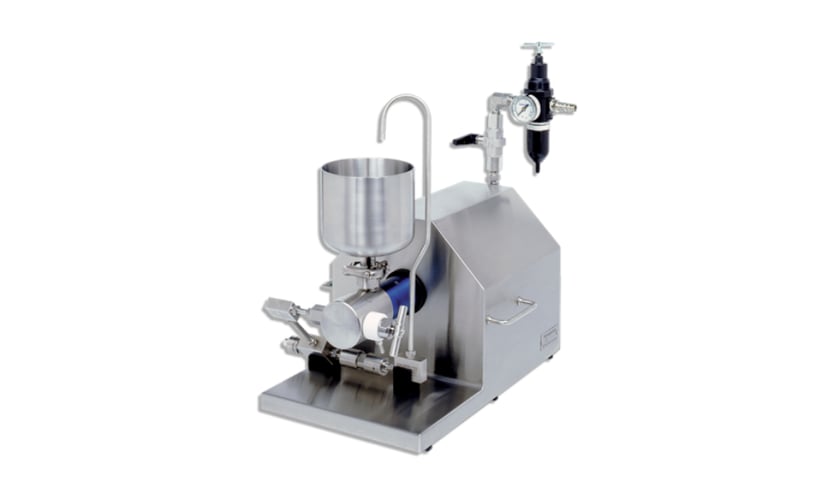

HC2000 / HC5000 / HC8000
